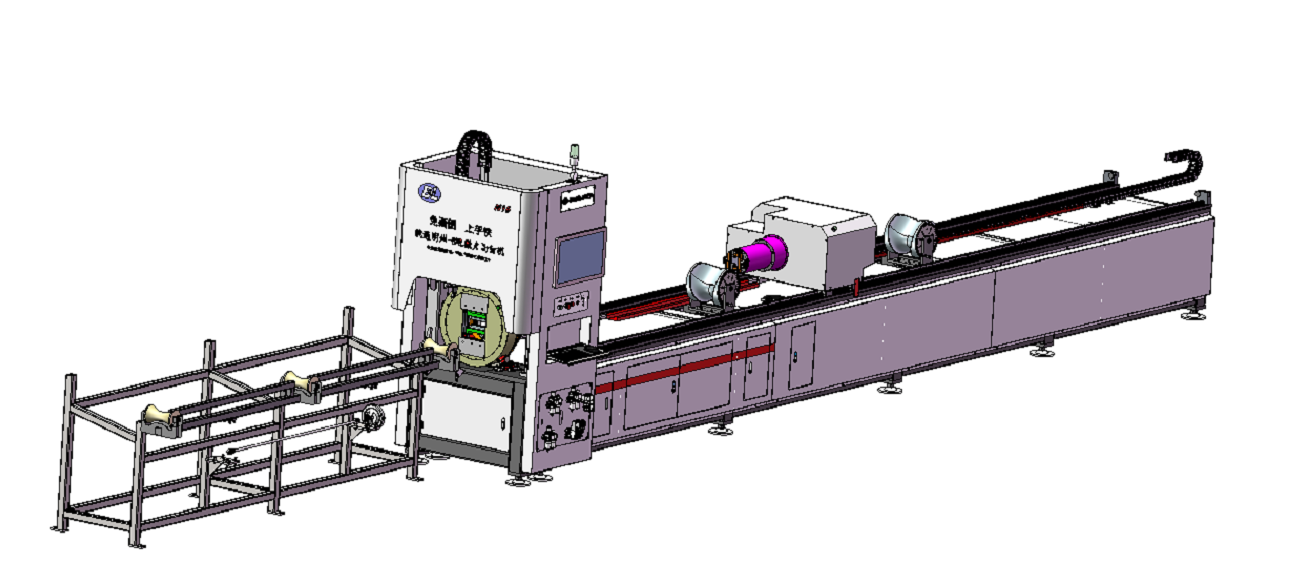

MY10 Improved Material Utilization Pipe Laser Cutting Machine With Movable Front Chuck And Full-stroke Chuck

FEATURES:

The front chuck can be cut in a movable way, and the tail material is super short to about 45MM or "0" tail material design, which can

greatly improve the utilization rate of materials and save materials.

Drawing-free pipe cutting system: ordinary masters can quickly get started, eliminating the production method of drawing traditional three-dimensional drawings for conventional pipes and hole types.

Bus control system: The entire series adopts a bus control system, multi-axis linkage, to achieve frog jump, flying cutting and other processes, and the efficiency is about 30% higher than the traditional pulse system.

Full-stroke chuck: automatic centering, multi-material and multi-shape pipes do not need to change the fixture.

The rear chuck automatically blows air, the claws are not easy to get stuck, and the pipe wall is cleaner.

Left/right model customization: more suitable for the placement of the factory, convenient for the master to operate and save floor space, saving manpower and space.

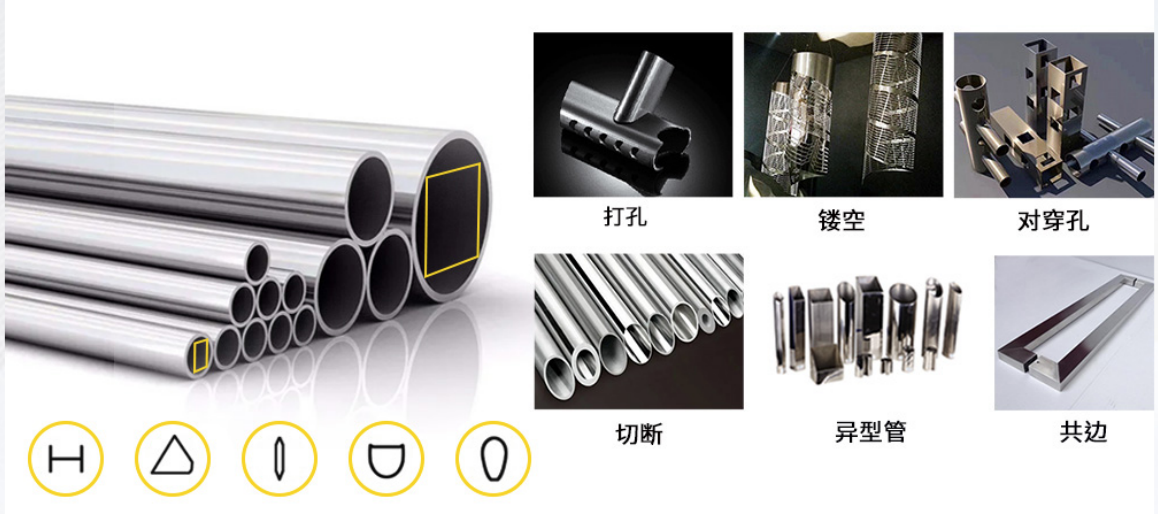

Many cutting types: square tubes, round tubes, oval tubes, channel steels, angle steels, I-beams and other pipes.

The standard laser power is 1500W, and other powers are available.The chiller with 1500W laser is a horizontal model as standard, which is placed in the main body, with less noise and smaller footprint.Chillers of other powers are vertical and external models, which are placed at any position outside the main machine.

Standard: rack gray + sheet metal red, optional: rack blue + sheet metal white (other colors can be specially made).

If the appearance and parameters of the equipment are changed without further notice, only the terms of our technical plan and order confirmation are binding, and the contract and the real object shall prevail.

OPTIONAL CHOICE:

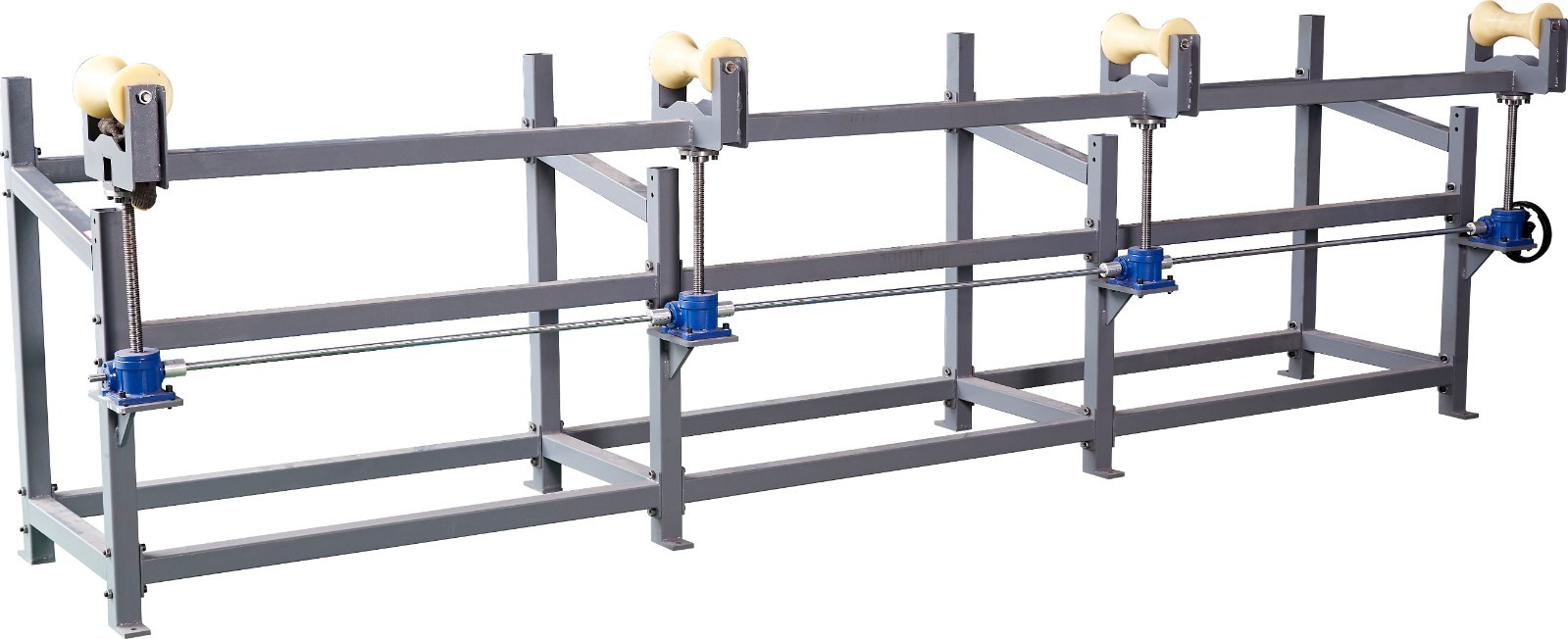

1. Feeding system (optional): the feeding frame is smooth and fast, with automatic and semi-automatic feeding system is optional.

2. Sagging system (optional): solve the problem of residual residue cutting on the inner wall of the pipe and save the secondary vibration polishing process.

Technical Parameter:

   Foshan Mingzhou Intelligent Equipment Co., Ltd. (hereinafter referred to as the company) was established in 2010. The founder has been engaged in the metal pipe industry for more than 25 years. It is a high-tech enterprise dedicated to providing high-performance professional laser pipe cutting for global users. It has a number of key core technologies and more than 30 invention, utility, appearance and other patents. Located in Nanhai District, Foshan City, Guangdong Province, China's building materials base.

    The company has a strong R&D technical team. The hydraulic automatic punching machine developed by the company at the beginning of its establishment has led the extension and development of the entire industry. In recent years, it has taken the lead in proposing and promoting the development of "laser pipe cutting machine without drawing", breaking the original traditional laser pipe cutting method that requires traditional three-dimensional drawings first, and has been highly recognized and promoted by the industry. The company has always adhered to the product development concept that ordinary people can use high-end equipment. In the fields of intelligent automatic production lines, loading and unloading mechanisms, and slag removal mechanisms, it has realized equipment production lines that ordinary masters can use and maintain. Equipped with a digital management system, it helps customers to start production early, easy to maintain, and manage with data, and quickly improve production efficiency.

    Laser pipe cutting machine is now the mainstream equipment for metal pipe processing, cutting and hole cutting. It effectively combines traditional cutting, punching and other processes into one process, and has the characteristics of fast speed, high precision and diversified cutting. It is used in many fields: metal pipe processing in various fields such as fence guardrails, shelf display racks, hardware accessories, furniture and bathroom, medical equipment, sports equipment, automobile manufacturing, architectural decoration, electrical equipment, elevator equipment, etc. Pipe processing in industries such as railings, guardrails, anti-theft nets, shelves, automobiles, motorcycles, electric vehicles, bicycles, air conditioners, etc.

     At present, the company has served more than 4,000 corporate customers worldwide and continues to innovate. It has advanced technology and continuous R&D capabilities in the industry, and is customer-oriented. It customizes non-standard products according to customer needs to provide customers with faster, more accurate, better-used and more cost-effective laser pipe cutting equipment.
